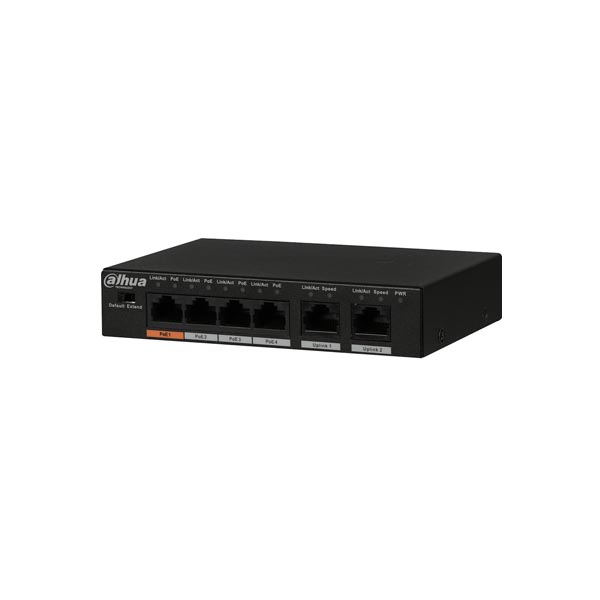

DAHUA 4-port Fast Ethernet PoE Switch Layer 2 Commercial Switch DH-PFS3006-4ET-60.

PFS3006-4ET-60 is a 4-port fast ethernet switch, which supports 250 meters of long-distance PoE transmission. It provides 4*10/100Mbps PoE ports and 2*100 Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by a DIP switch.

> Two-layer PoE Ethernet switch
> MAC auto study and aging, MAC address list capacity is 1K
> Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
> Default Mode: The device works as a general switch and all ports support 10/100Mbps auto-negotiation.
> Extend Mode: VLAN isolation is enabled. Ports 1-4 will be isolated respectively (10Mbps auto-negotiation), but they can communicate with the Uplink port. Besides, the transmission distance of power and network data is up to 250m.
