Synology M.2 22110 NVMe SSD SNV3500 400GB SNV3500-400G
₦0.00

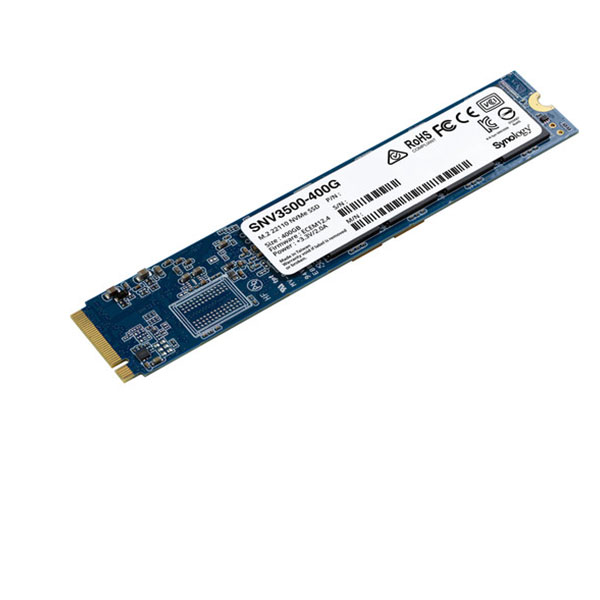

Synology 400GB SNV3500 NVMe M.2 22110 SSD
Boost the performance of your compatible NAS with the 400GB SNV3500 NVMe M.2 22110 SSD from Synology, which has been built for demanding cache deployments. It can handle tough caching workloads in 24/7 multi-user environments, while its durable I/O performance boosts system responsiveness and speeds up the handling of frequently accessed data to provide a streamlined storage experience while minimizing service disruptions.
This SSD has an overall capacity of 400GB, an NVMe PCIe 3.0 x4 interface, an M.2 22110 form factor, sequential read speeds of up to 3100 MB/s, sequential write speeds of up to 550 MB/s, random reads of 205,000 IOPS, and random writes of up to 40,000 IOPS. It also features an endurance of 550TB TBW (terabytes are written), 0.68 DWPD (drive writes per day), a 1.8 million-hour MTBF (mean time between failures), and an UBER (uncorrectable bit error rate) of <1 sector per 1017 bits read.
Synology 400GB SNV3500 NVMe M.2 22110 SSD
Boost the performance of your compatible NAS with the 400GB SNV3500 NVMe M.2 22110 SSD from Synology, which has been built for demanding cache deployments. It can handle tough caching workloads in 24/7 multi-user environments, while its durable I/O performance boosts system responsiveness and speeds up the handling of frequently accessed data to provide a streamlined storage experience while minimizing service disruptions.
This SSD has an overall capacity of 400GB, an NVMe PCIe 3.0 x4 interface, an M.2 22110 form factor, sequential read speeds of up to 3100 MB/s, sequential write speeds of up to 550 MB/s, random reads of 205,000 IOPS, and random writes of up to 40,000 IOPS. It also features an endurance of 550TB TBW (terabytes are written), 0.68 DWPD (drive writes per day), a 1.8 million-hour MTBF (mean time between failures), and an UBER (uncorrectable bit error rate) of <1 sector per 1017 bits read.
General Features
Durable SSD for Demanding Caching Workloads
The Synology SNV3500 Series NVMe SSD is designed to handle tough caching workloads in a 24/7 multi-user environment. Its durable I/O performance boosts system responsiveness and speeds up the handling of frequent access data, providing a streamlined storage experience while minimizing service disruptions to your Synology NAS.
Consistently Fast Caching for 24/7 Environments
Built for system caching, the Synology SNV3500 pushes up random I/O performance and reduces latency in demanding 24/7 environments. It offers durable caching with over 205,000/40,000 4K random read/write IOPS and a 500 TBW endurance rating, suitable for multimedia post-production and database applications.
Data Integrity Safeguards
The Synology SNV3500 integrates end-to-end data protection to safeguard data integrity over the entire transfer path. The SNV3500 comes with a power loss protection circuit design, further preventing data corruption during an abnormal shutdown. Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.
Lifetime Analytics Based on Actual Workload
Full integration with Synology’s DiskStation Manager (DSM) enables lifetime analytics for each SNV3500 unit based on actual workloads:
Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal Use
Easy monitoring allows you to make optimal use of each SSD.
Purpose-Built for Synology NAS
The Synology SNV3500 is thoroughly tested for compatibility with Synology systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet strict standards for quality and reliability.
Key Features
- Designed for FS Series NAS Models
- 400GB Storage Capacity
- M.2 22110 Form Factor
- PCIe 3.0 x4 Interface
- Up to 550 MB/s Sequential Write Speed
- Up to 3100 MB/s Sequential Read Speed
- 1.8 Million Hours MTBF
- Endurance up to 500 Terabytes Written
| tech brand | SYNOLOGY |
|---|
Storage
| Drive Capacity | 400.00 GB |
Performance
| Interface | PCIe 3.0 x4 |
| Random Read Speed | 205,000 IOPS (4 KB Files) |
| Random Write Speed | 40,000 IOPS (4 KB Files) |
| Sequential Read Speed | 3100 MB/s (128 KB Files) |
| Sequential Write Speed | 550 MB/s (128 KB Files) |
Physical
| Drive Type | SSD |
| Form Factor | M.2 22110 |
Reliability / Data Integrity
| Endurance (Total Bytes Written) | 500 TB |
| Mean Time Between Failures (MTBF) | 1.8 Million Hours |
| Non-Recoverable Read Errors per Bits Read | 1 in 1017 |
Electrical
| Power Draw | 3.7 W (Active) 3.4 W (Active) 2.0 W (Idle) |
| Supported Voltage | 3.3 VDC |
| Current | 2.0 A at 3.3 VDC |
Environmental
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
General
| Certifications | CE, FCC, IC, RoHS, VCCI, as per Manufacturer |
| Dimensions (W x H x D) | 0.87 x 0.18 x 3.15″ / 22 x 4.5 x 80 mm |
| Warranty Length | Limited 5-Year Warranty |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 5.5 x 3.8 x 0.9″ |
